Factory Direct Coin Operated Sales 19 Inch Full Body Check Self Service Health Kiosk Machine
Product Description

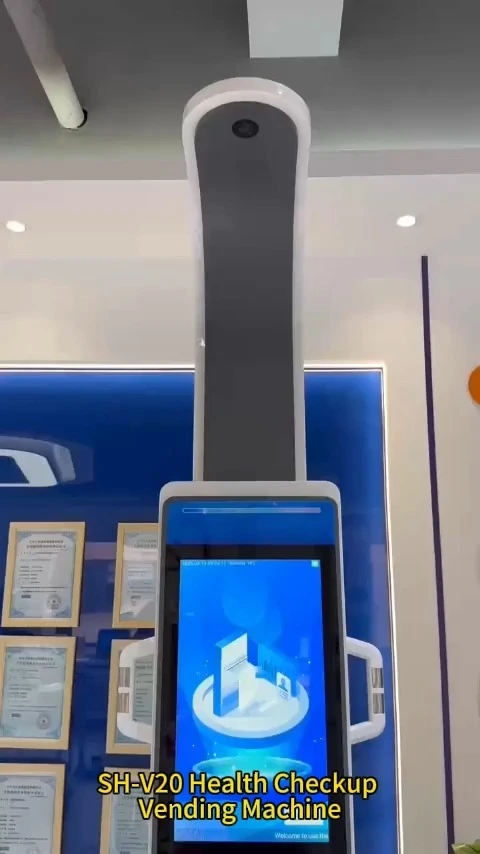

SH-V20 Coin Operated Health Checkup Kiosk Machine:
● The main function is height, weight, BMI, body fat, blood pressure&pulse, thermal printer.
● 19-inch LCD touch screen, displays indoor temperature and current time in standby mode, customize videos and images for brand promotion.
● Coin operated(paper money/Nayax card optional)payment function helping customers make profits.
● AI robot guides operation, automatic voice broadcast measurement results.
● Ultrasonic/Millimeter wave technology to measure height (non-touch).
● Precision balanced beam resistive strain sensor.
● 4-electrode human bioelectrical impedance; 8-electrode (optional) Indicators: body fat percentage, body water percentage, muscle mass percentage, basal metabolic rate, inorganic salts, etc.
● Intelligent pressurization technology, oscillometric measurement method
(supports left and right arm)
● Blood pressure measurement: 0-299mmHg(0kPa-39.9kPa); Pulse range:40-180 beats/min.
● Micro thermal printer automatic paper cutting, paper size: 50*57mm.
● Data transfer: RS232 serial port,WiFi (standard); Bluetooth/4G/cloud interface (optional), etc, data can be transmitted to the customer's software, such as HIS/LIS system/APP/PC, etc.
Customer Cases
product specification
| Intelligent Systems | Android 6.0 smart OS operating system; face recognition function (optional) |
| Screen | HD LCD 19-inch display touch system, play pictures and videos in standby mode |
| Height Measurement | Millimeter wave sensor, high frequency millimeter wave signal ranging Height Range: 20-210cm, accuracy:±0.5cm,division value:0.5cm or 0.1cm adjustable |
| Weight Measurement | Precision Balance Beam Resistive Strain Gauge Pressure Sensor Weighing Weight Range: 2.0-500kg, accuracy: ±0.1kg, division value: 0.1kg or 0.01kg adjustable |
| Blood pressure |
Intelligent pressurization technology, oscillometric measurement method (supports left and right arm, the blood pressure monitor can be fixed up or down) |
| Pressure: 0-299mmHg(0kPa-39.9kPa), pulse: 40~180 beats/min | |
| Pressure:3mmHg(±0.4kPa), pulse rate: accuracy is 5% | |
|
Body fat |
4-electrode human bioelectrical impedance method; 8-electrode (optional) |
| 5%-75% | |
| Body fat percentage, body water percentage, muscle mass percentage, basal metabolic rate, inorganic salts, etc. | |
| Coin Operated | The coin acceptor can recognize coins from different countries. The coin size is 15mm-29mm in diameter and 1.8mm-3.0mm in thickness. |
| Optional payment | Paper money/Nayax card reader(Visa/PayPal/Google Pay/Apple Pay/ scan QR code)payment method help user make profits. |
| Thermal printer | Micro thermal printer automatic paper cutting, paper size:50*57mm, customizable header and footer. |
| Optional Expansion | Blood oximeter, temperature, IC/ID, ID card, barcode scanner, etc. |
| Data Transfer | Standard: RS232, WiFi; Optional:Bluetooth,3G/4G, RJ45 |
| Data Storage |
More than 1 million data store and support USB flash drive export Can communicate with third-party health system data Compatible with hospitals, electronic medical records (EMR), HIS and other manage systems Support automatic members input, health screening, historical query, data statistical |
| Health Report | Thermal printing, local report, test result send to mobile, A4 printing/email/cloud platform (optional) |
| Voltage | AC100V-240V/12V DC power |
| Dimension | 585*575*2350mm/L*W*H Packing size: 180*49*22cm(20kg) 68*49*40cm(25kg) 0.3CBM |
product details
Service
01
24 hours to reply your inquiries and 72 hours solution response.
02
For one year free warranty and after-sales online technology support.
03
Can provide your best software and hardware customization solution if you need.
04
All scales already exported many countries, support your own logo,OEM/ODM service
05
Own Experienced R&D and factory to help your better use our products, and help you grow your market business based on we have the range of distributor policy.
06
Offer you best solution is our honor! SHANGHE do hope we can build good partnerships in the long term business and help you expand your sales!
application
The SH-V20 Coin-operated health screening machines are strategically deployed in high-traffic public areas to maximize accessibility. You can commonly find them in shopping malls, railway stations, airports, and tourist attractions, where they cater to busy passersby. They are also placed in community centers, supermarkets, and large corporate lobbies. This self-service model allows anyone to pay a small fee for an instant, private checkup of vital signs like blood pressure, weight, and heart rate. By offering convenient, on-demand health data, these machines promote preventive healthcare awareness and make basic monitoring accessible to people who might otherwise skip regular checkups.
faq
