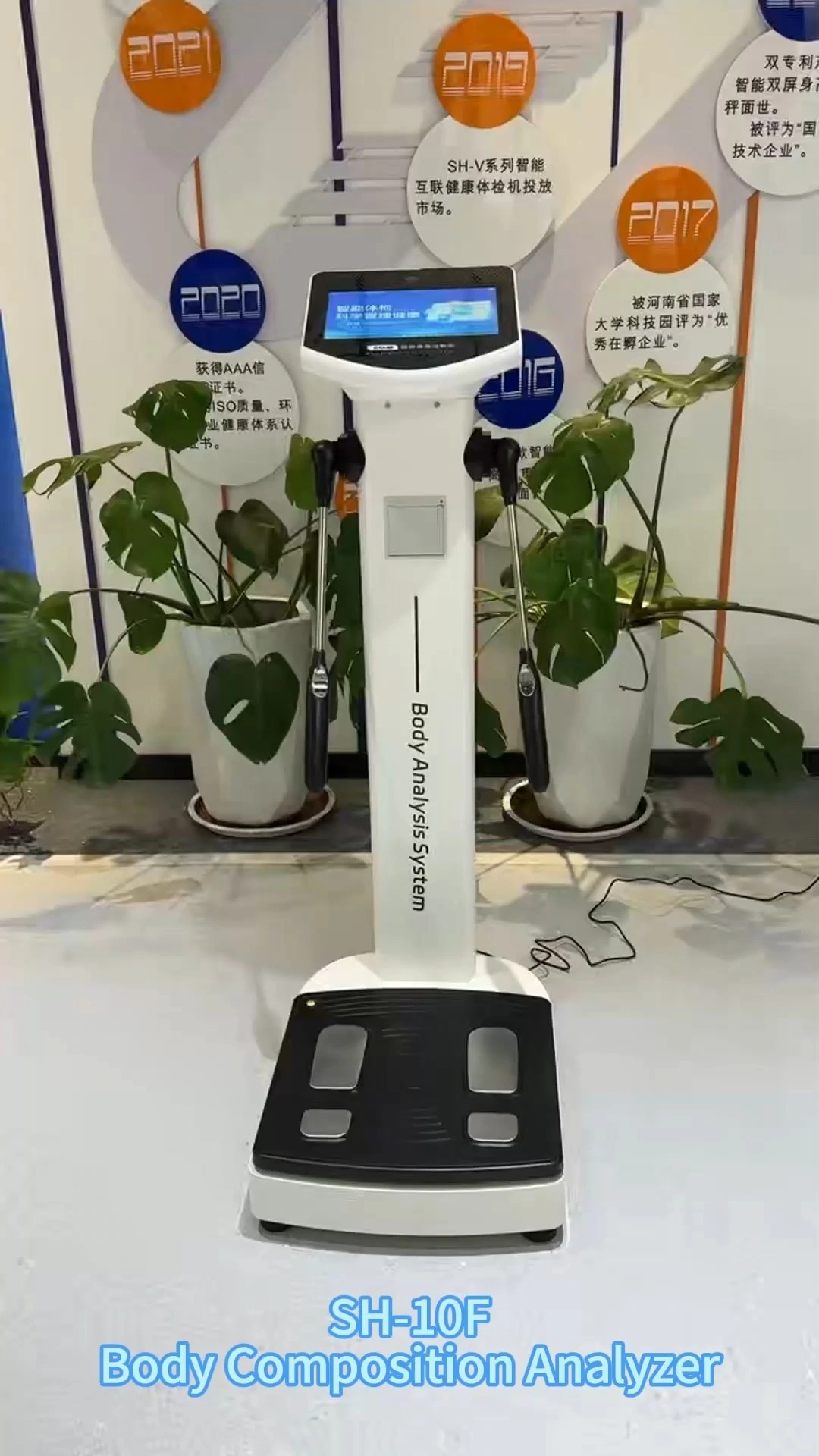

SH-10F Body Composition Analyzer Machine
Product Description
SH-10F Body Composition Analyzer Machine Functions:
●The main function is weight, BMI, body composition analysis, thermal printer, face recognition(optional).
●10.2-inch LCD touch screen, displays indoor temperature and current time in standby mode, customize videos and images for brand promotion.
●Optional: coin operated payment function helping customers make profits.
●AI robot guides operation, automatic voice broadcast measurement results.
●8-point contact electrode, multi-frequency bioelectrical impedance (BIA). Indicators: body fat percentage, body water percentage, muscle mass percentage, basal metabolic rate, inorganic salts, etc.
●Frequency: 20KHz, 100KHz
●Segments：5 parts (left arm, right arm, trunk, left leg, right leg)
●Micro thermal printer automatic paper cutting, paper size: 50*57mm.
●Three ways to get the report: ①thermal printer②phone report③download report
●Optional Expansion: facial recognition, IC/ID card reader, barcode scanner, etc.
The main function is automatic measurement of height and weight with BMI displayed.
Customer Cases
product specification
| Model | SH-10F |
| Measurement Items | Weight, BMI, body shape, ideal weight, weight control, healthy weight range; basic assessment: fat mass, body fat percentage, body water content, water percentage, skeletal muscle mass, muscle mass, muscle percentage, basal metabolism, waist-to-hip ratio, etc. |
| Body composition analyzer | 8-point contact electrode, multi-frequency bioelectrical impedance (BIA) |
| Frequency: 20KHz, 100KHz | |
| Impedance measurement range: 10-2000Ω | |
| Current: ≤420±20μA | |
| Segments：5 parts (left arm, right arm, trunk, left leg, right leg) | |
| Measurement time | ≤60 seconds |
| Weight Measurement | Measure range: 5-500kg |
| accuracy: ±0.1kg, division value: 0.1kg or 0.01kg adjustable | |
| Measure mode: precise balanced sendor | |
| Local Archives | This device supports one-step self-service registration and measurement, health screening, historical data query, big data statistical analysis and management, and provides health guidance services, dietary suggestions, exercise planning, etc. based on measurement data. |
| Data Output Format | Standard: RS232, WiFi; Optional: Bluetooth, 3G/4G, RJ45, data can be transmitted to the customer's software, such as Fitness Center Membership Management System/APP/PC, etc. |
| Display Mode | AI robot guided operation, HD LCD 10.2-inch display touch system, play pictures and videos in standby mode. |
| Report Output | ①Thermal printing; ②scan QR code by phone to view and download the A4 report; ③A4 printer optional |
| Coin operated(Optional) | The coin acceptor can recognize coins from different countries. The coin size is 15mm-29mm in diameter and 1.8mm-3.0mm in thickness |
| Power Supply Voltage | AC160v-250v,50HZ |
| Identify(Optional) | Face recognition, QR code/barcode, Enter account/mobile number,IC/ID card, etc. |
product details
Service
01
24 hours to reply your inquiries and 72 hours solution response.
02
For one year free warranty and after-sales online technology support.
03
Can provide your best software and hardware customization solution if you need.
04
Supports 17 languages including English,Spanish,can switch languages freely.
05
AI robot guided operation, 5 ways to get report after the measurement is completed.
06
Data can be transmitted to the customer's software, such as HIS/LIS system/APP/PC, etc.
application
The SH-10F Weight, and Body Fat Analyzer is a professional device that integrates precise measurement and intelligent analysis, suitable for a variety of health management scenarios. It helps users comprehensively understand their physical condition and develop scientific health plans. Whether in fitness centers, clinics, yoga studios, or nutrition centers, the SH-10F can be your reliable assistant, making health management more efficient and professional.
